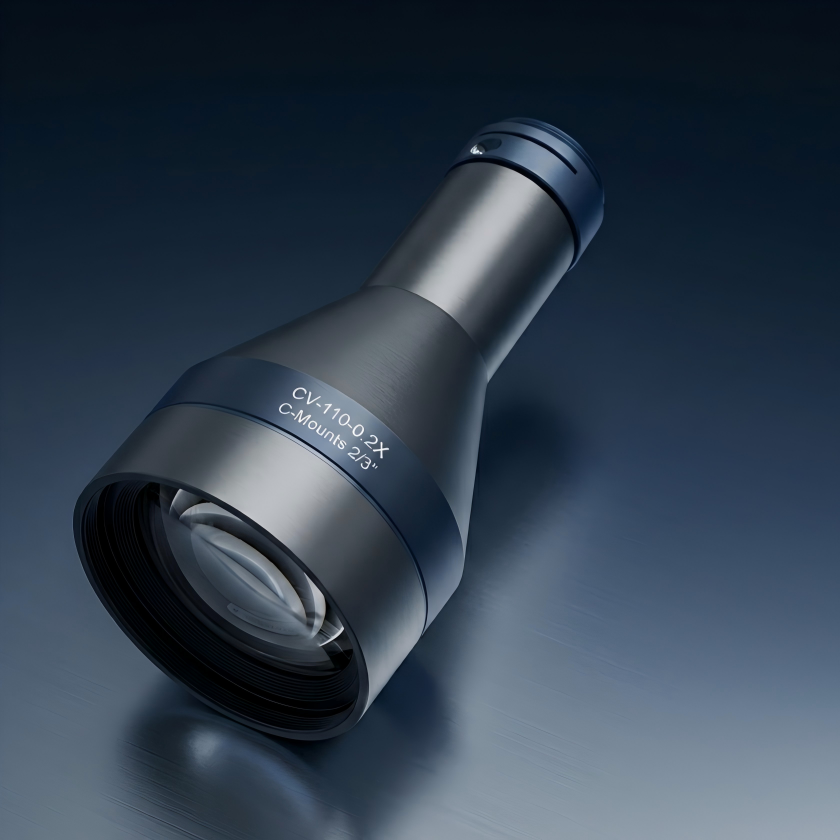

High-Precision Bi-Telecentric Lenses (C-Mount)
<0.01° Ultra-Low Telecentricity | 0.2X - 2.0X In-Stock | 0.02% Optical Distortion
- Absolute Metrology Grade: True bi-telecentric design (<0.01° telecentricity) eliminates perspective parallax and sensor-tilt errors for strict dimensional gauging.
- Exceptional Image Fidelity: 0.02% optical distortion and high MTF (>0.4 @ 100lp/mm) ensure sharp edge detection for sub-micron algorithms.
- Industrial Robustness: Anodized aluminum housing (-20°C to +80°C) featuring a standard 110mm working distance and internal M62×0.75 filter threads.
- 100% Export Compliant: In-stock range (0.2X – 2.0X). Germanium-free and ITAR-free for a secure B2B global supply chain.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Optical Design | True Bi-Telecentric (Object & Image Space Correction) |
| Telecentricity | < 0.01° (Precision Metrology Grade) |
| Optical Distortion | 0.02% |
| Image MTF | > 0.4 @ 100 lp/mm |
| Working Distance (W.D.) | 110 mm ± 3% (Standardized across core models) |
| Camera Interface | Standard C-Mount |
| Front Filter Thread | M62.00 × 0.75 mm (Internal UV/Polarizer Thread) |
| Construction Material | Industrial Anodized Aluminum Alloy + Coated Optical Glass |
| Operating Temperature | -20°C to +80°C |
| Operation Focus / Zoom | Manual Focus Lock / Fixed Zoom |
In-Stock Inventory Matrix
| Mag. | Target Sensor | Typical Object FOV | F/# | W.D. | DOF | Stock Status |
|---|---|---|---|---|---|---|
| 0.2X (Ref) | 2/3" (Dia 11mm) | Dia 55.00 mm | F8.0 | 110 mm | 12.0 mm | In Stock |
| 0.3X | Up to 2/3" | Dia 36.60 mm | Standard | 110 mm | Model spec | In Stock |
| 0.5X | Up to 2/3" | Dia 22.00 mm | Standard | 110 mm | Model spec | In Stock |
| 0.7X | Up to 2/3" | Dia 15.70 mm | Standard | 110 mm | Model spec | In Stock |
| 1.0X | Up to 2/3" | Dia 11.00 mm | Standard | 110 mm | Model spec | In Stock |
| 2.0X | Up to 1/2" | Dia 5.50 mm | Standard | 110 mm | Model spec | In Stock |
Product Overview
True Double Telecentricity
Unlike standard telecentric lenses that only correct entrance pupils, our Bi-Telecentric series corrects both object and image space. Even if your industrial camera's sensor is mounted with a slight mechanical tilt, or the inspected object experiences vertical vibration on the conveyor, the dimensional magnification remains 100% locked.
Harsh Environment Stability
Weighing a solid 320g, the heavy-duty anodized aluminum body ensures absolute optical axis stability under heavy industrial vibrations. Engineered with a wide thermal operating range (-20°C to +80°C) and front M62 filter threads, it thrives inside hot stamping facilities and harsh machining environments.
Reliable, Risk-Free Supply
We understand that continuous production relies on a predictable supply chain. By strictly focusing on civilian-use optical components and explicitly avoiding export-restricted materials like Germanium, our export processes are highly streamlined. We deliver globally compliant, ready-to-assemble optics directly to your factory floor or third-party integrators.
Metrology & Performance Reports

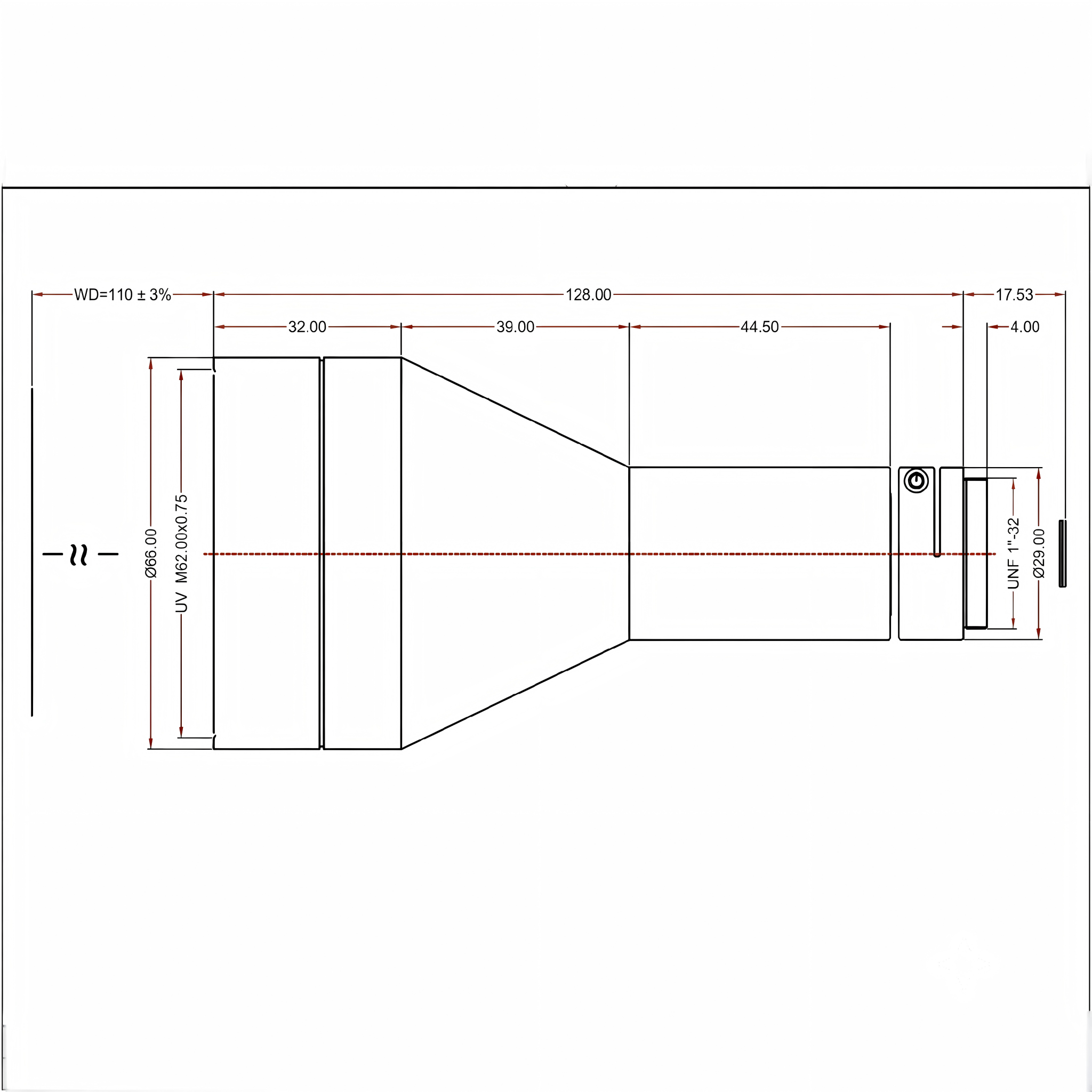

Figure 1: Mechanical Dimensions & Optical Profile (0.2X Model)
Illustrating the highly compact Φ66×128mm profile, precision 110mm working distance, and the front M62.00×0.75 internal thread engineered for direct optical filter integration.
Metrology Analysis & Application Fit
- Target Spectrum: Optimized for broadband Visible to Near-Infrared (VIS-NIR) wavelengths.
- Resolution Assurance: Resolving down to 16.5μm (on 0.2X models) with an exceptional MTF (>0.4), ensuring your vision software experiences zero binarization threshold errors when measuring ultra-fine contours.
- Primary Applications:
- High-precision metrology of silicon semiconductor wafers
- Non-contact gauging of internal threads, micro-gears, and fasteners
- Dimensional verification of stamped smartphone mid-frames
- Medical device micro-component profiling
One-Stop Metrology Calibration Bundles
To unleash the full <0.01° telecentric potential of this lens, precise spatial calibration is mandatory. Alongside our in-stock bi-telecentric lenses, we manufacture matching High-Precision Machine Vision Calibration Targets (including standard 50x50mm chrome-on-glass plates certified to ±5um accuracy). Bundle your lens with a matched target to achieve plug-and-play sub-micron measurement right out of the box.
