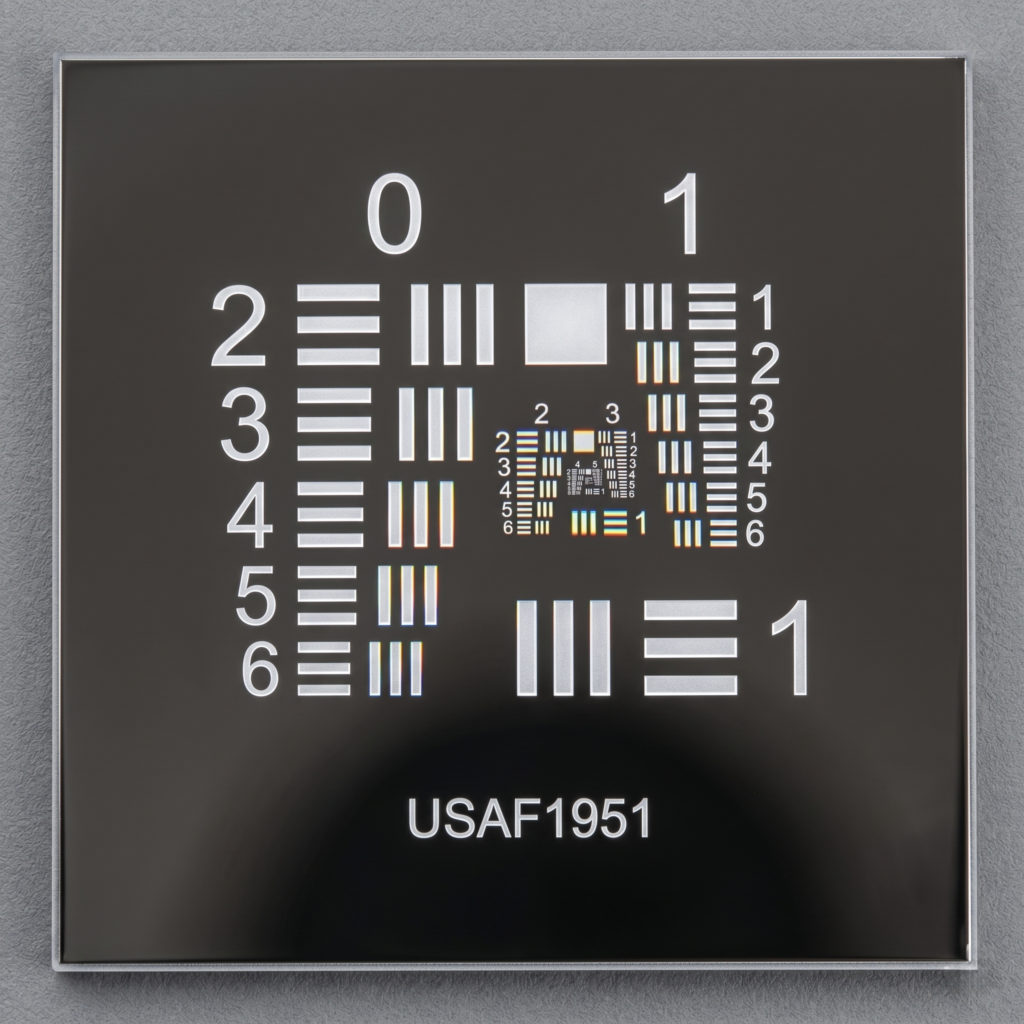

High-Precision USAF 1951 Resolution Target (Negative)
Industry-standard optical calibration for civilian machine vision and industrial metrology. Featuring razor-sharp clear patterns on a high-OD chrome background, delivering absolute contrast and micron-level accuracy.
- Vacuum-Deposited Chrome with >3.0 OD for Absolute "Dead-Black" Contrast
- Razor-Sharp Clear Line Pairs (Up to Group 7) with Zero Edge Burrs
- Engineered for Industrial Automation, Microscopy, and Optical Metrology
- Custom Dimensions, Substrates, and Fixture Sub-Assembly Available
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Pattern Type | USAF 1951 (Negative / Clear pattern on dark background) |
| Substrate Material | Soda Lime Glass / B270 / Quartz (Customizable) |
| Coating | Vacuum Deposited Chrome |
| Optical Density (OD) | > 3.0 OD (Opaque Area) |
| Resolution Range | Group 0 to Group 7 (Up to 228 lp/mm) |
| Dimensional Tolerance | ±0.1 mm |
| Thickness Tolerance | ±0.1 mm |
| Surface Quality | 40-20 Scratch and Dig |
| Export Status | Unrestricted for Civilian & Industrial Use |
Product Overview
Absolute Optical Contrast
Manufactured using an advanced vacuum photo-etching process, our negative resolution targets feature completely transparent line pairs against a "dead-black" chrome background. This >3.0 OD opacity guarantees the maximum signal-to-noise ratio for machine vision calibration.
Micron-Level Edge Sharpness
Precision is our priority. The microscopic elements—down to Group 7—are fabricated with razor-sharp edges and zero micro-burrs. This ensures your imaging systems and industrial microscopes calculate precise line pairs per millimeter (lp/mm) without reading errors.
Global Compliance & Reliability
Strictly engineered for civilian industrial applications, including semiconductor inspection, automated metrology, and optical instrument calibration. We guarantee reliable, compliant, and unrestricted global supply of high-precision non-controlled optical components.
Metrology & Performance Reports

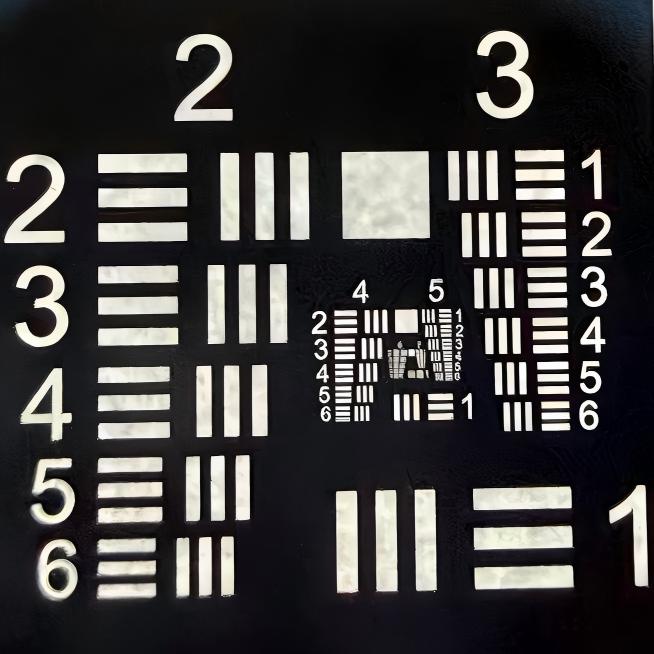

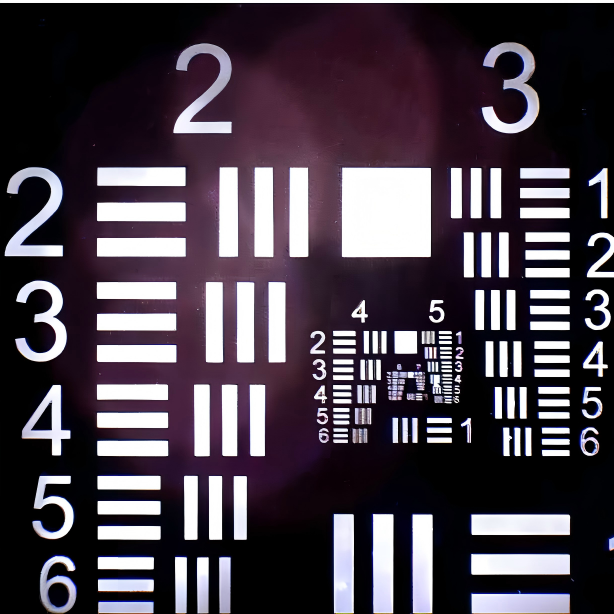

Figure 1: Extreme Macro Verification of Central Elements (Group 6 & 7)
The microscopic image demonstrates flawless edge definition and proportional accuracy in the most demanding high-frequency line pairs, ensuring reliable resolution testing.
Metrology Validation & Opto-Mechanical Services
- Testing Equipment: High-Resolution Optical Measuring Microscope
- Performance Index: Line width accuracy, edge sharpness, and Chrome Optical Density (>3.0 OD).
- Material Quality: Premium optical glass ensures thermal stability and prevents mechanical deformation during rigorous calibration routines.
- Benefit: Provides an absolute physical benchmark for calibrating pixel size, lens distortion, and overall system resolution in demanding industrial environments.
Leverage Our Sub-Assembly Capabilities
Stop sourcing loose components. We provide complete technical matching and opto-mechanical assembly services. We can mount your USAF 1951 targets into custom metal frames, slider brackets, or calibration fixtures, delivering a ready-to-use sub-system that saves your engineering time.
