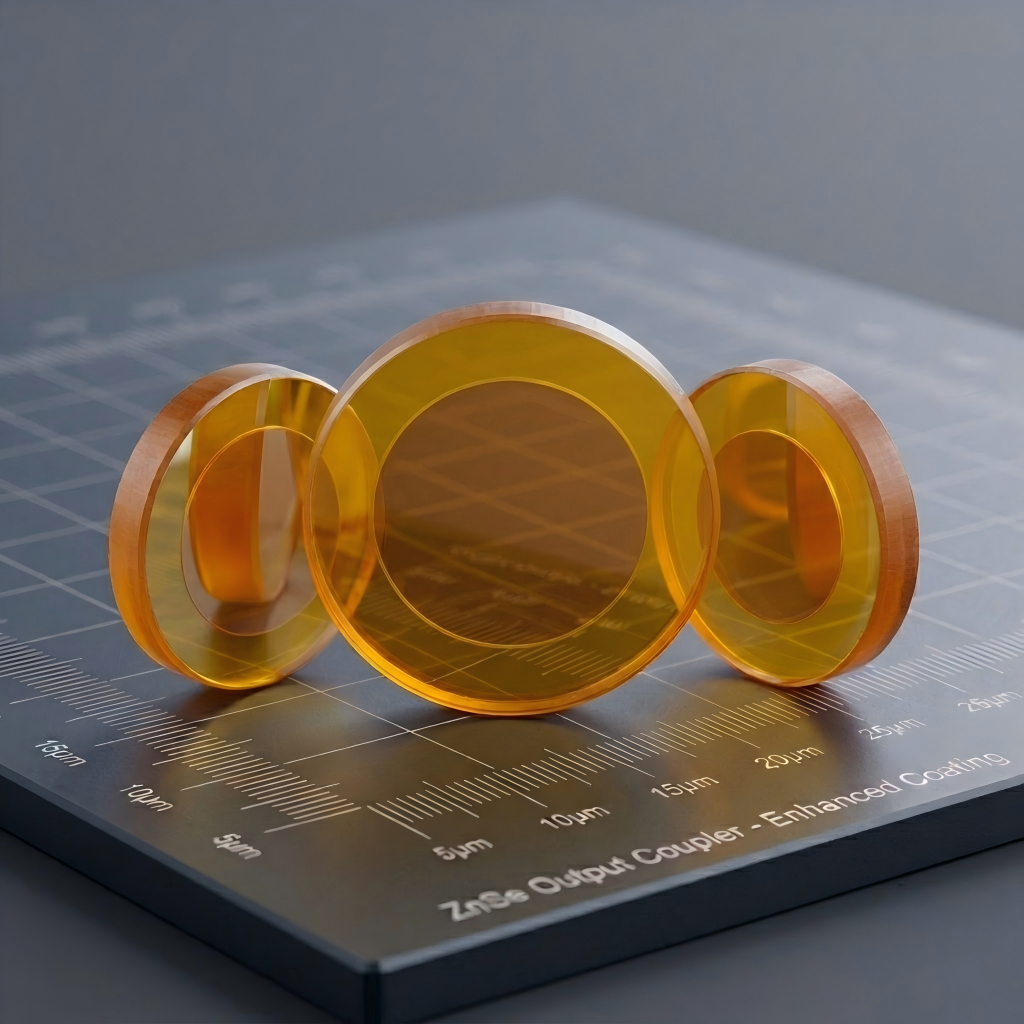

High-Precision CVD ZnSe Output Couplers for CO2 Lasers
Exact Reflectance | High Damage Threshold | OEM Resonator Optics
- Precise Partial Reflectance: Custom transmission-to-reflection ratios (e.g., 50%, 60%, 80%) engineered to maintain optimal laser oscillation and beam extraction.
- High Damage Threshold (LIDT): Premium CVD ZnSe substrate combined with advanced dielectric coatings withstands continuous high-power intra-cavity energy without degradation.
- Exceptional Surface Flatness: Polished to severe tolerances (< λ/40 @ 10.6μm) to guarantee a stable fundamental beam mode (TEM00) and prevent wavefront distortion.
- 100% Export Compliant (Civilian Use): Germanium-free, commercial-grade optical components. Ensures a stable, restriction-free global B2B supply chain for industrial laser manufacturing.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Substrate | CVD Zinc Selenide (ZnSe) |
| Design Wavelength | 10.6 μm (CO2 Laser) |
| Reflectance (R) | Custom tailored (e.g., 20% to 90%, Tolerance: ±1%) |
| Dimensions (Diameter) | Standard (19.05mm, 25.4mm, 38.1mm) or Custom |
| Thickness Tolerance | ±0.1 mm |
| Surface quality | 40-20 Scratch-Dig Standard |
| Surface Flatness | < λ/40 @ 10.6μm |
| Wedge Angle | 3 to 5 arc minutes (Standard, prevents etalon effects) |
| Coating (Surface 1) | Partial Reflective (PR) Dielectric Coating @ 10.6μm |
| Coating (Surface 2) | Broadband Anti-Reflective (BBAR) Coating @ 10.6μm |
Product Overview
The Heart of the Laser Resonator
The Output Coupler (OC) is arguably the most critical optical component within a CO2 laser cavity. Acting as the front mirror of the resonator, it must simultaneously reflect a precise percentage of light back into the chamber to sustain stimulated emission, while transmitting the remaining energy to form the final cutting or engraving beam. Our output couplers are engineered to deliver exact reflectance ratios, ensuring your laser systems operate at peak output power and efficiency.
Thermal Stability & Mode Control
Because the output coupler sits directly in the path of maximum intra-cavity power, even the slightest bulk absorption can lead to catastrophic thermal lensing or mirror failure. We utilize only the highest purity CVD ZnSe materials and employ low-absorption dielectric coatings. Combined with extreme surface flatness, our output couplers ensure a perfectly stable beam profile (such as TEM00) over thousands of hours of continuous industrial material processing.
Precision OEM Integration
To eliminate destructive interference (etalon effects) within the laser cavity, our standard output couplers are manufactured with a precise wedge angle. Delivered with strictly controlled dimensional tolerances and chamfered edges, these cavity optics are ready for immediate, flawless integration into high-end optomechanical housings and OEM laser assemblies.
Metrology & Performance Reports

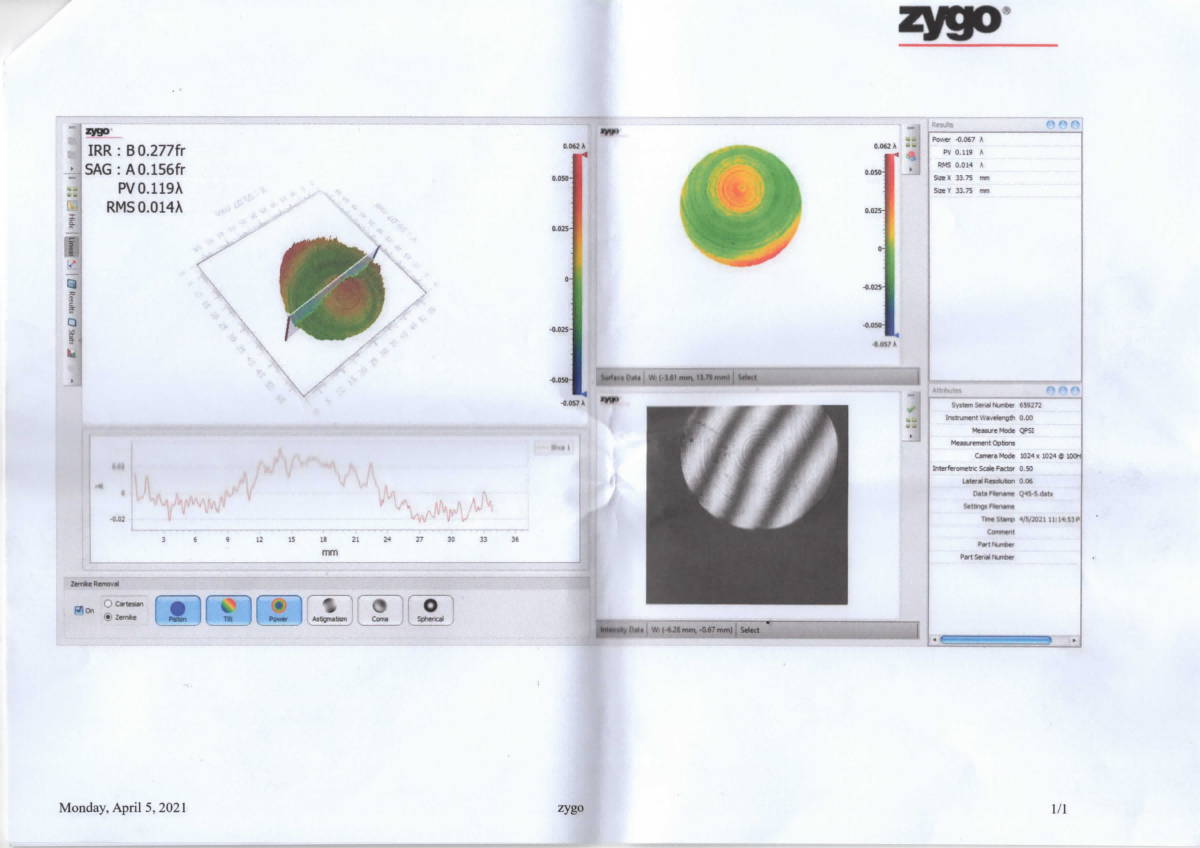

Figure 1: Zygo Interferometric Surface Analysis
Testing Equipment: Zygo Laser Interferometer | Component: ZnSe Output Coupler
The concentric interferogram precisely validates the customized radius of curvature (ROC), which is critical for maintaining continuous resonator stability and achieving optimal beam mode extraction (TEM00). As demonstrated by the quantitative test results—featuring an exceptional Peak-to-Valley (PV) of 0.119λ and a Root Mean Square (RMS) of just 0.014λ—this component exhibits virtually zero localized wavefront distortion. This strict sub-fringe surface tolerance minimizes energy scattering, prevents thermal lensing under high-power conditions, and guarantees maximum output efficiency for industrial CO2 laser systems.
Precision Surface Figure & Curvature Validation
- Exceptional Surface Accuracy: Test results indicate a Peak-to-Valley (PV) of 0.119λ and a Root Mean Square (RMS) of 0.014λ. This severe tolerance ensures zero measurable wavefront distortion.
- Optimized Cavity Stability: The precision-controlled convex/meniscus curvature perfectly matches the resonator’s mode volume, facilitating a highly stable fundamental beam mode (TEM00).
- Thermal Distortion Prevention: Combined with our premium low-absorption CVD ZnSe substrate, this superior surface figure prevents thermal lensing and prevents focal shift during continuous, high-power industrial laser processing.
- Benefit: By guaranteeing exact geometric profiles and sub-fringe surface flatness, our output couplers ensure maximum laser energy throughput and significantly reduce your OEM
Leverage Our In-House Metrology Capabilities
Struggling with unstable beam modes, power fluctuations, or frequent cavity mirror failures? We provide end-to-end metrology support, including custom reflectance profiling, interferogram validation, and high-LIDT coating analysis. Connect with an expert engineer to finalize your resonator fabrication specs and secure highly stable optics for your systems.
