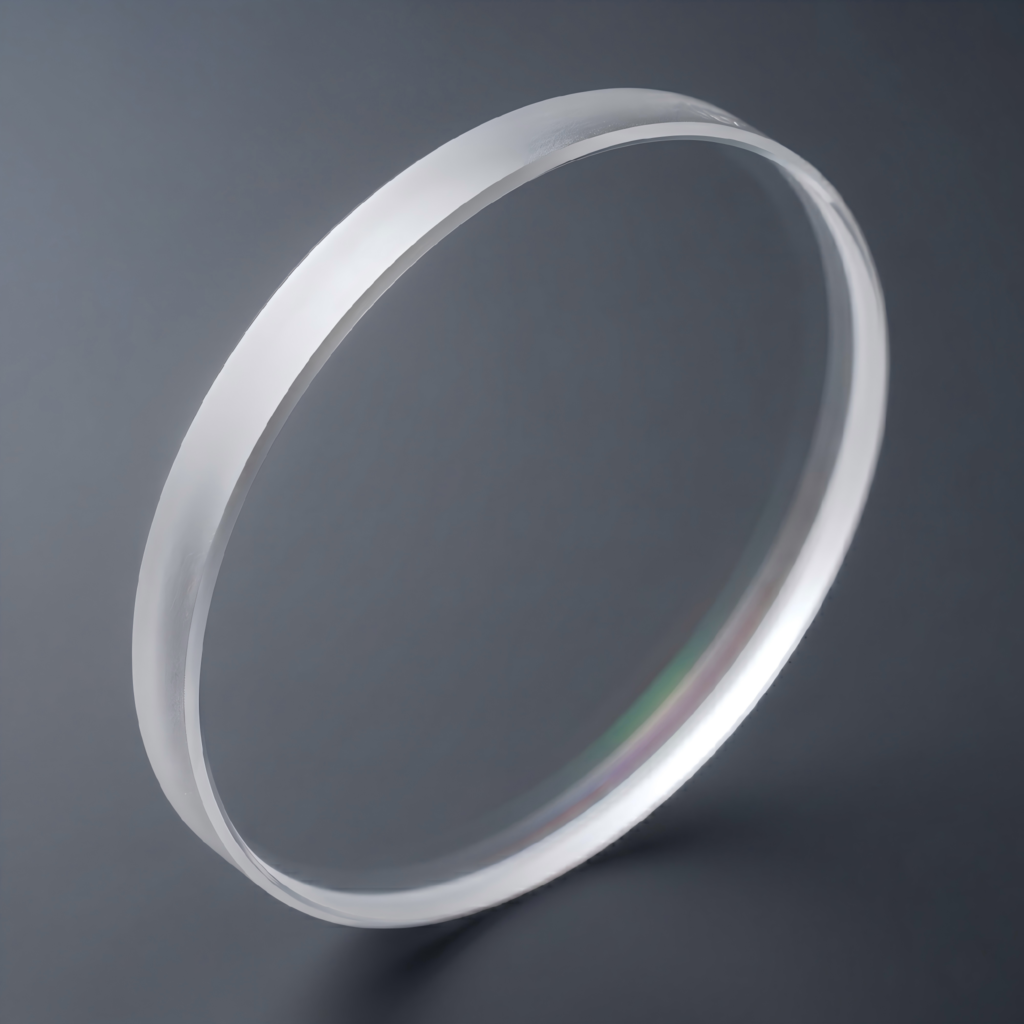

High-Durability Sapphire Protective Windows
Extreme Scratch Resistance | Broad Spectrum Transmission | OEM Custom Integration
- Unmatched Durability (Mohs 9): Manufactured from monocrystalline sapphire. Delivers exceptional resistance to scratches, chemicals, and extreme temperatures. The ideal protective barrier for critical laser optics and sensors in harsh industrial environments.
- Broadband Transmission (UV to MWIR): Outstanding optical clarity spanning from Deep Ultraviolet (170nm) to Mid-Wave Infrared (5μm). The premier choice for multi-spectral machine vision and thermal imaging systems.
- Thermal & Pressure Stability: Features immense structural strength and superior thermal conductivity. Withstands high-pressure differentials and severe thermal shock, ensuring long-term reliability for sealed vacuum viewports.
- 100% Export Compliant (Civilian Use): Germanium-free and engineered exclusively for commercial instrumentation. Guarantees a highly stable, restriction-free global supply chain for your OEM optomechanical manufacturing.
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Substrate | Synthetic Sapphire (Al₂O₃) - C-plane, A-plane, or R-plane |
| Dimensions | Custom (Round, Square, Stepped, or Custom CNC Geometries) |
| Thickness | 0.3mm to 30mm |
| Surface Quality | 60-40 (Standard) to 40-20 Scratch-Dig (Precision) |
| Surface Flatness | < λ/4 @ 632.8nm |
| Parallelism | < 1 arc minute (Standard) / < 10 arc seconds (Precision) |
| Hardness | Mohs 9 (Knoop 2000) |
| Transmission Range | ~150nm to 5µm (Uncoated) |
| Coating | Uncoated, Single-layer MgF₂, or Custom BBAR |
| Clear Aperture | > 90% of central dimension |
Product Overview
The Ultimate Barrier for Precision Optics
When standard optical glass or fused silica fails under pressure or abrasive conditions, sapphire is the definitive solution. Our sapphire protective windows act as an impenetrable shield for delicate sensors, cameras, and laser internal components. They are essential for protecting expensive internal optics from flying debris, high-pressure fluids, and corrosive gases in demanding manufacturing and analytical environments.
Multi-Spectral Versatility
Unlike many optical materials that absorb specific wavelengths, sapphire offers a remarkably broad transmission window. Whether you are developing a deep-UV curing system, a high-power visible laser alignment tool, or a mid-infrared thermal imaging device, a single sapphire window can often serve the entire spectrum without significant signal attenuation.
Reliable, Ready-to-Integrate Optics
We understand that continuous B2B production relies on absolute predictability. We deliver globally compliant, tightly toleranced sapphire components directly to your factory floor or third-party integrators. With expertly chamfered edges to prevent chipping, our windows are designed for safe and immediate integration into your optomechanical housings, ensuring long-term hermetic seals.
Application & Engineering Integration

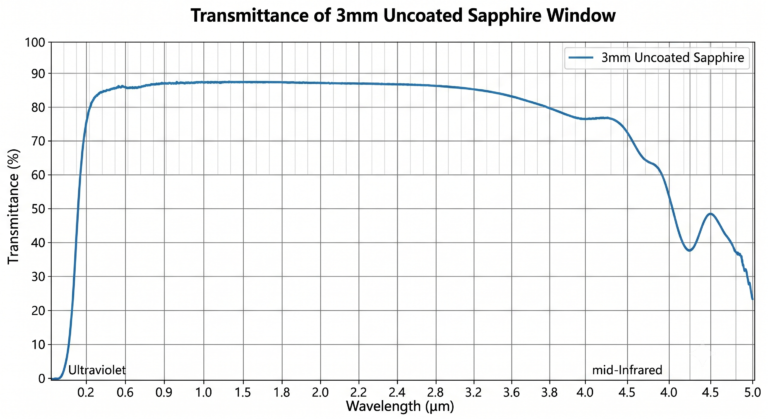

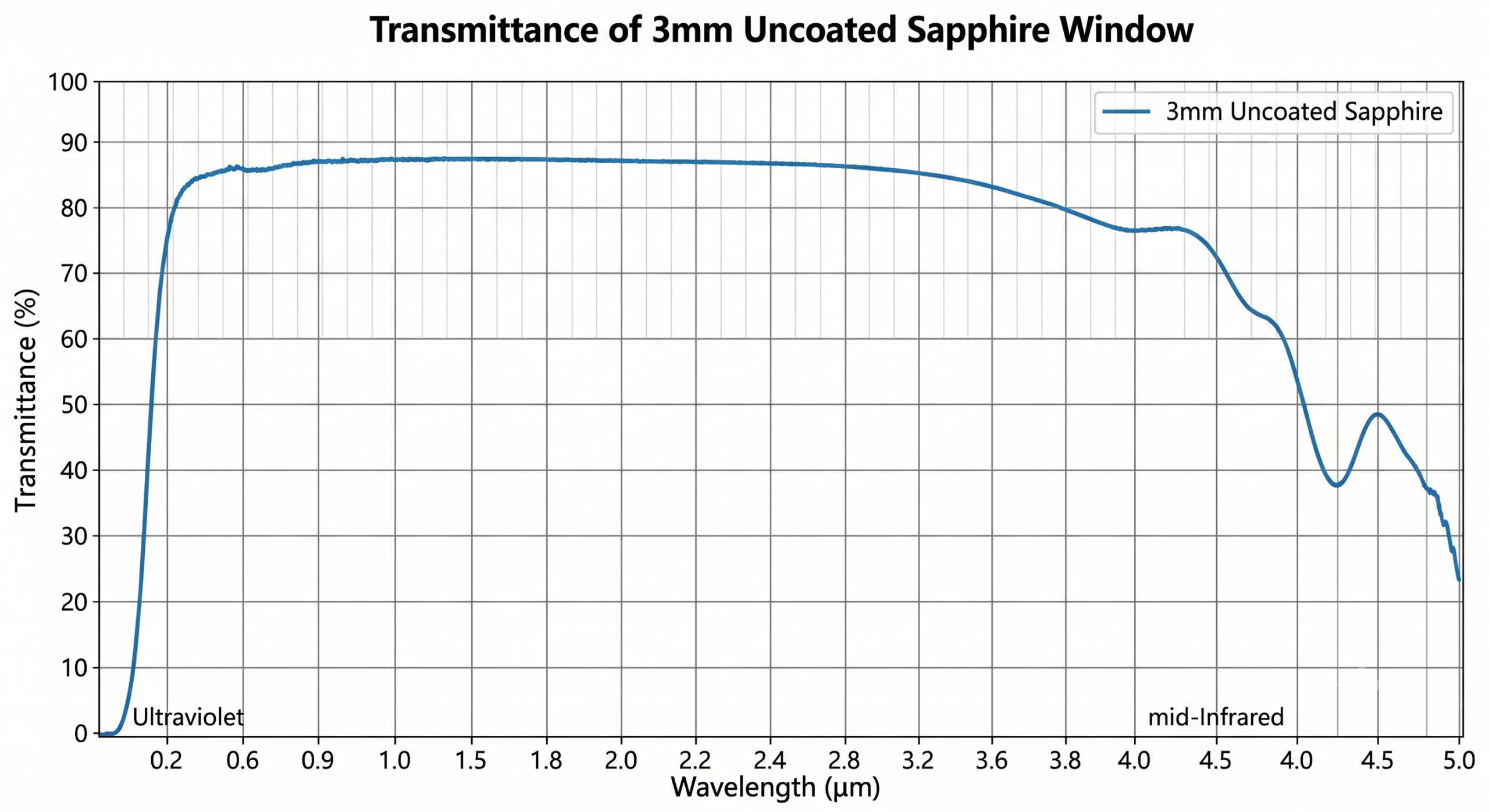

Demonstrates an exceptionally broad transmission range, maintaining an average transmittance of >85% from the Ultraviolet (~0.3μm) straight through to the Mid-Wave Infrared (~3.5μm), providing a versatile solution for multi-spectral environments.

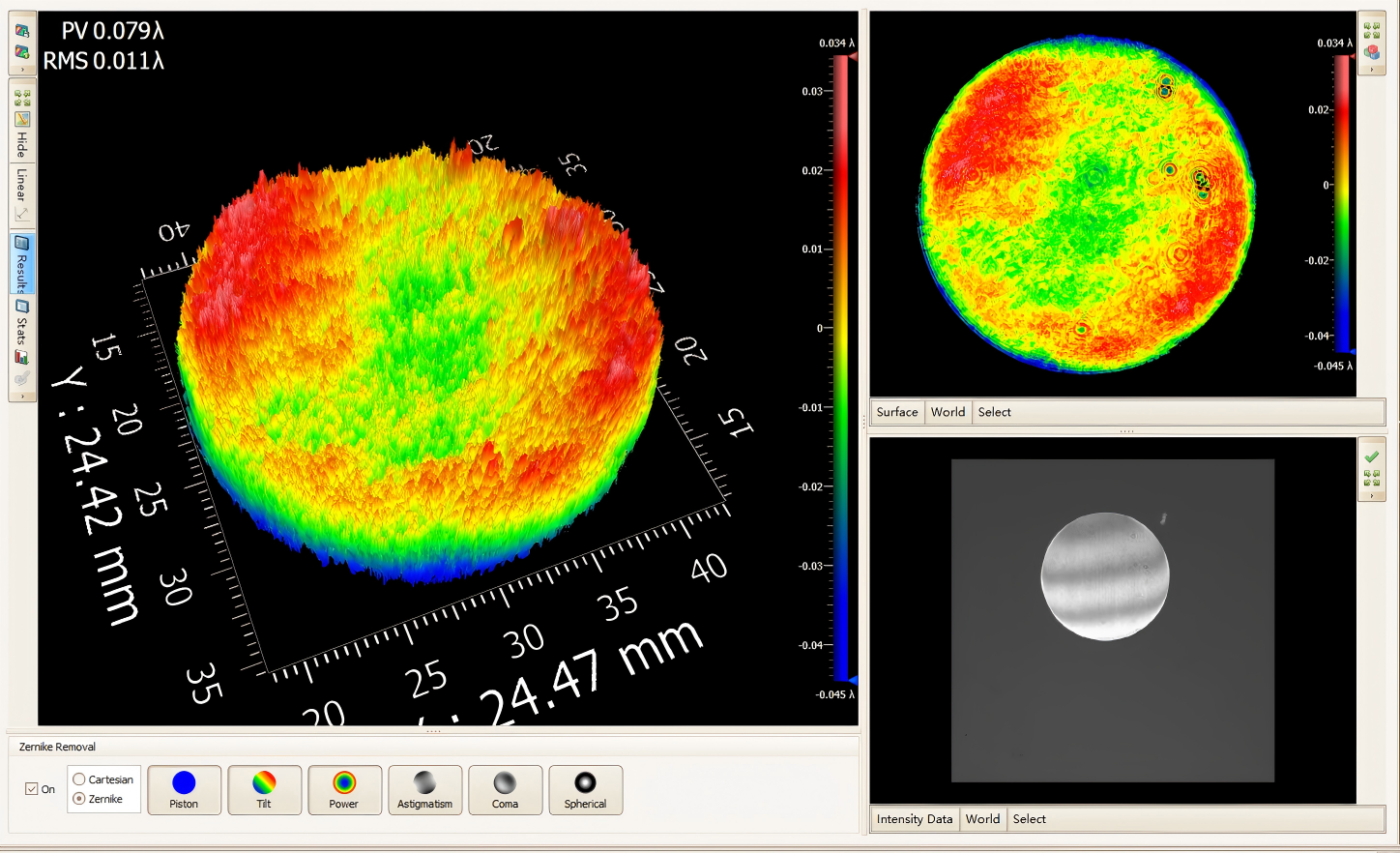

Figure 1: Interferometric Surface Analysis (Sapphire Window)
Demonstrates superior surface accuracy achieved through advanced polishing techniques. The interferogram displays an outstanding Peak-to-Valley (PV) flatness of 0.079λ (better than $\lambda$/10) and an RMS of 0.011λ, ensuring negligible wavefront distortion for critical laser and imaging systems.
Metrology Analysis & Application Fit
- Target Wavelength: Exceptional transmission from ~170nm (UV) up to ~5.5μm (MWIR).
- Birefringence Control: For applications sensitive to polarization, we provide C-axis cut sapphire to eliminate birefringent effects, ensuring the integrity of polarized laser beams.
- Primary Applications:
- Protective viewports for high-vacuum and high-pressure chambers.
- Cover glass for machine vision cameras in harsh industrial settings.
- Debris shields for high-power laser material processing.
- Protective windows for multi-spectral sensors and analytical instruments.
Custom Optomechanical Solutions
If your system requires specialized edge grinding for O-ring sealing, or custom broad-band anti-reflective (BBAR) coatings to maximize throughput at a specific laser wavelength, our engineering team is ready to review your CAD files. We provide comprehensive, scaleable production solutions tailored precisely to your instrument housings.
