High-Precision Checkerboard Calibration Target (Glass)
The absolute physical benchmark for civilian machine vision and automated metrology. Featuring a ±5μm precision chrome checkerboard on a perfectly transparent optical glass substrate for ultimate sub-pixel calibration.
- ±5μm Micron-Level Accuracy for Reliable Camera Calibration
- Premium Transparent Glass Substrate with Zero Distortion
- Vacuum-Deposited Chrome (>3.0 OD) for "Dead-Black" Contrast
- Custom Dimensions and Opto-Mechanical Assembly Available
Technical Specifications
| Technical Parameter | Specification |
|---|---|
| Pattern Type | Checkerboard (Clear glass background with chrome squares) |
| Substrate Material | Transparent Optical Glass (Soda Lime / B270 / Quartz) |
| Coating | Vacuum Deposited Chrome |
| Manufacturing Accuracy | ±5 μm （Customizable) |
| Overall Dimensions | 50 mm x 50 mm (Customizable) |
| Optical Density (OD) | > 3.0 OD (Chrome Area) |
| Surface Quality | 40-20 Scratch and Dig |
| Export Status | Unrestricted for Civilian & Industrial Use |
Product Overview
Ultimate "Dead-Black" Contrast
Coated with high-density vacuum chrome on a pure, transparent glass base. When paired with backlight illumination, the target delivers extreme signal-to-noise ratios, completely eliminating reflections and ghosting for flawless edge detection.
±5μm Edge Sharpness
Manufactured utilizing advanced optical photolithography. The critical cross-junctions of our checkerboard pattern are flawlessly sharp and free of micro-burrs, ensuring absolute sub-pixel accuracy for your system algorithms.
Compliant B2B Global Supply
Strictly engineered for civilian industrial applications such as robotics, 3D scanning, and AOI inspection. We provide reliable global export and technical sourcing support for international machine vision integrators.
Metrology & Performance Reports

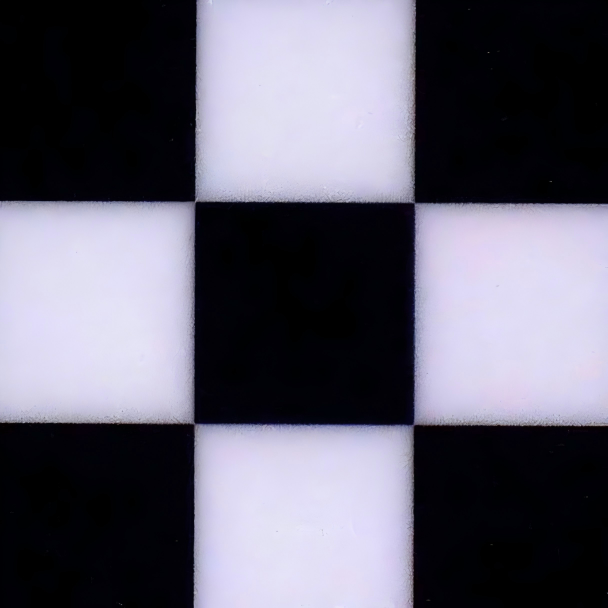

Figure 1: 12MP Microscopic Verification of Checkerboard Cross-Junction.
The microscopic image displays perfect point-to-point contact with zero ink bleeding or edge aliasing, strictly validating the ±5μm manufacturing tolerance.
Optical Metrology & Sub-Assembly Solutions
- Testing Equipment: 12MP Industrial Digital Microscope & CMM.
- Performance Index: Rigorous verification of grid square dimensional accuracy (±5μm), edge definition, and absolute glass flatness.
- Thermal Stability: Premium optical glass ensures dimensional stability, preventing expansion or warping even under harsh, continuous industrial LED lighting.
Transition to Complete Sub-Assembly
Stop sourcing loose optical components. Our technical team provides comprehensive opto-mechanical assembly services. We can expertly mount your 50x50mm calibration glass into protective aluminum frames, slider brackets, or complex multi-angle calibration jigs, delivering a ready-to-use sub-system that saves your engineers valuable integration time.
